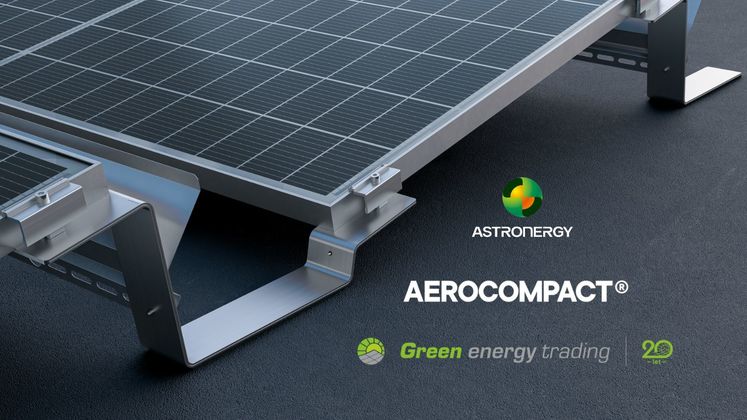

Динамично дуо: слънчеви панели Astronergy и монтажна система Aerocompact

Choosing the right solar panels can be challenging in itself, let alone choosing the right mounting system to achieve the best possible result.

With us, it's a piece of cake. Astronergy ASTRO series solar panels and Aerocompact structures fit together perfectly. What's more, you can see samples of the structures for yourself at our headquarters in Znojmo and take part in training courses in Znojmo and at Aerocompact in Vienna. You can see for yourself the high quality of the materials used and the workmanship.

Astronergy
Astronergy is a manufacturing company focusing on photovoltaic cells and modules. It was founded in 2006 and is one of the earliest private companies in China to enter the photovoltaic field. It is also a pioneer of n-type TOPCon PV modules. In addition, their production uses intelligent production lines.

It focuses on the research and development, production and sale of high-efficiency crystalline silicon PV cells and PV modules and continuously launches the ASTRO series of modules, which are characterised by high efficiency, quality and performance.

Both the bifaccial and monofaccial modules of the ASTRO series, which use large wafers, can be ideally applied in various scenarios of large power plants, commercial and industrial PV systems, and residential PV systems.

Astronergy CHSM72N(DG)/F-BH 585 SF
The Astronergy ASTRO 5 product line includes monocrystalline modules with high power ratings and high module efficiency. ASTRO 5 panels use a TOPCon n-type 4.0 photovoltaic cell and boast a better temperature coefficient and better performance at low irradiance.

The Astronergy CHSM72N(DG)/F-BH 585 SF solar panel has a power output of 585 Wp and an efficiency of 22.6%. The panel consists of 144 cells and uses TOPCon and Half-cut technology.
Its advantages include a low temperature coefficient (Pmpp) and low BOS and LCOE costs.
Product warranty 15 years, performance warranty 30 years.

Width: 113.40 cm
Height: 227.80 cm
Depth: 3.00 cm
Technology: TOPCon
Panel type: Mono

Astronergy CHSM54RNs(DG)/F-BH 450 BF
Astronergy introduced the world's first ZBB (Zero BusBar Interconnection Technology) - TF (Tiling Film) manufacturing technology and was the first to receive TÜV Rheinland certification for it. The absence of busbars, together with a protective film that not only protects against hidden cracks on the panel surface, also creates an elegant all-black appearance.
ASTRO N7s modules use ZBB-TF technology. Thanks to this, these solar panels achieve higher efficiency. CHSM54RNs(DG)(BLH)/F-BH 450 FB is a solar panel with a power output of 450Wp and an efficiency of 22.5%.

Width: 113.40 cm
Height: 176.20 cm
Depth: 3.00 cm
Technology: TOPCon
Panel type: Bifacial
Aerocompact
The Austrian company Aerocompact was founded in 2014. It specializes in the development, production and distribution of PV panel mounting solutions with respect to all static requirements, wind and snow loads and the highest industry standards and norms.

They have entered the market with an innovative solar panel mounting bracket system that reduces the amount of material required for the understructure of PV systems by one third.

Together with the mounting components, they later launched the specially developed visualization and planning software AEROTOOL.

Their aerodynamically optimised solutions for mounting PV systems are patent protected and offer safety and mechanical stability. All products are tested to the most stringent industry standards and are extremely cost-effective.


Compact Flat S10
The COMPACTFLAT S10 system is an aerodynamic mounting system for south-facing flat roofs. It includes a pre-assembled PES protection pad for framed PV modules. It is available with 10° and 15° inclinations, with different row spacings and also in a version for mountainous areas.

Components of the Compact Flat S10

Connection to the roof
AEROCOMPACT offers a solution for roofs that cannot support the additional weight of a PV system. The combination of roof mounting points and ballast reduces the overall weight of the system.

This option is also suitable for areas with increased seismic activity to prevent system displacement due to earthquakes.

Version for mountainous areas
This version is used in the case of higher snow loads, which are calculated using our online software AEROTOOL based on the specific project.

Ballast trays
This version of the system with ballast tubs, available in different sizes, is designed for areas with high wind loads and roofs with low point load capacity.

It provides additional load per module while evenly distributing concentrated loads on the roof covering. An additional locking ballast holder protects the stones from slipping and ensures that they are evenly distributed

Cable management
The string cable management solution is UL-certified and available as standard product.
